Broken Tonearm

my sx97 is broken...the tonearm is loose and the screw wont grip anymore...what can i do?

podguy
Occasional Contributor

Re: Broken Tonearm

have you tried superglue for grip?

Wainworests
New Content Contributor

Re: Broken Tonearm

this happens alot...i would get the replacement!

Yorssenter
New Content Contributor

Re: Broken Tonearm

yup. if you have the sx97 you can get it replaced for free in any shop. no questions asked!!



http://vimeo.com/65592611






Cars
New Content Contributor

Re: Broken Tonearm

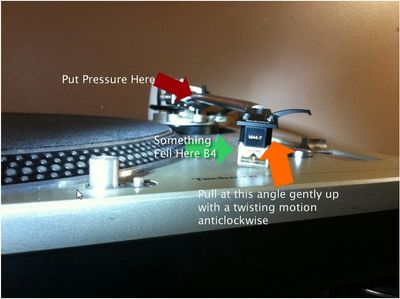

Simple fix is to bend it back .. I Used to hire out and manage a stock of 60 1210's and if this ever happened its what we used to do (of course we'd charge the customer for damage .ScreenShot_18 08-Aug.jpg





Unless the bearings have been shot there should be no issues with tracking... You can check if there is resistance by setting the weight until the tonearm "floats" .. Set the anti-skate to zero, and let it drift left/right.. so long as it does not "stall" continually on one point you should be good.

If it stalls at a point it might just be the bearing needs loosening rather than replacing (you'd be suprised how many folks think the middle screw should be solid tight) .. Loosen the outer locking ring on the bearing, loosen up the center screw and float test again until you get no resistance. Tighten the locking outer ring (without turning the middle screw) and you're good to go.

We used to have to do this regularly on our turntables when DJ's would set the height to Max and the tonearm assemby would hit the top of the flightcase in transit.

Sounds like your mate might have either "flattened" the bearings, which would need replacing, broken the anti skate or bent the part that holds the tonearm, and of these would cause tracking issues.

However in OP's case, I'd just gently bend or twist back the tonearm until its leveled and then adjust the bearing tightness if needed after testing above.. technics "official" service manual would specify replace the tonearm if it was damaged in any way but you don't need to... just dont put tooooooooo much pressure on it or you can crack the aluminum on under the bend, it'll still work fine but not look pretty .
**edit**

On looking at your pics, you have the height set rather low and looks like your stylus cover is hitting the deck, arm does look a lil twisted and looks like its dipping down alot still though.
